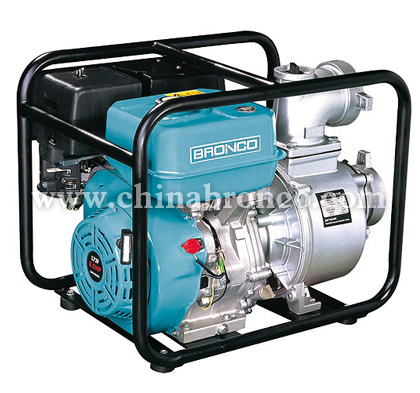

| Model: WP40 |
|
Feature:
-
Adopt OHV engines.
-
Close in strcture and convenient in operation.
-
Low noise,less oil consumption, linght weight and large discharge.
-
No need power source,safe in using,being the ideal selection of agricultural irrigation and industrial-use water.
|
Type |
WP40 |
|
Outlet Size(mm) |
100 |
|
Inlet size(mm) |
100 |
|
Speed (rpm) |
3600 |
|
Displacement Q.max(m3/h) |
108 |
|
Lift H.max(m) |
28 |
|
Suction(m) |
8 |
|
Engine Model |
BN173F |
|
Engine Type |
Forced air-cooled 4-stroke orlv |
|
Bore¡ÁStroke(mm) |
73¡Á58 |
|
Displacement(cm3) |
242 |
|
Compression Ratio |
8.2:1 |
|
Max Powwer Output(HP/rmp) |
8/3600 |
|
Max Torque(N¡¤m/rpm£© |
17/2500 |
|
Ignition System |
Non-contact transistorized ignition(TCI) |
|
Start Model |
Recoil an hand -operated |
|
Air Cleaner |
semi-dry |
|
Fuel Tank Capacity£¨L£© |
6.0 |
|
Fuel Consumption(g/Kw.h) |
¡Ü392 |
|
Oil Capacity(L) |
1.1 |
|
Packing Dimensions (mm) |
620¡Á445¡Á555 |
|
N.W/G.W(Kg) |
45 |
|
loading quantity in 20¡ä |
180 |
|
loading quantity in 40¡ä |
380 |
|
loading quantity in 40¡äHQ |
380 | |
|
|
