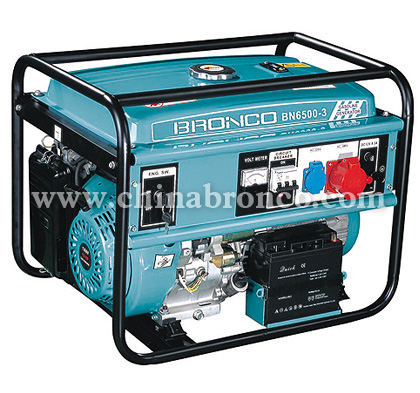

| Model: BN3000-3 BN6500-3 |
|
Feature:
-
The start power of generator set is a qualified gasoline engine,insuring fuel burning effectively and economically.
-
Adopting several reliable measures for shock protection,with a small shock of the whole sets.
-
With a whole closed structure set,adopting light materials,small cubage and light weight.
|
Generator |
Specification |
BN3000-3 |
BN6500-3 |
|
Rated rotation speed(rmp) |
3000 |
3000 |
|
Rated voltage(V) |
400/230 |
400/230 |
|
Rated amperage(A) |
3.9 |
8 |
|
Max. output power(W) |
3000 |
6000 |
|
Rated output power(W) |
2700 |
5600 |
|
Rated Frequency(Hz) |
50 |
50 |
|
Phase |
Single/Three Phaes |
|
Voltage regulate |
AVR |
AVR |
|
Continuous running time(hrs) |
11 |
8 |
|
Engine |
Bore¡Ástroke(mm) |
68¡Á54 |
88¡Á64 |
|
Displacement(cm3) |
196 |
389 |
|
Compression Ratio |
8.5:1 |
8.0:1 |
|
Recommend power Output(HP/rpm) |
6.5/3600 |
13/3600 |
|
Max Torque(N.m/rpm) |
13/2500 |
25.5/2500 |
|
Fuel |
Gasoline |
|
Satrting system |
Recoil/Electric |
|
Lgnition system |
TCI |
TCI |
|
Oil capacity(L) |
0.65 |
1.1 |
|
Fuel tank capacity(L) |
15 |
25 |
|
Engine type |
BN168F-1 |
BN188F |
|
Noise level(7m)(dB) |
67 |
76 |
|
Parking Details |
Measurement(mm) |
590¡Á430¡Á430 |
685¡Á515¡Á550 |
|
N.W./(Kg) |
43 |
85 |
|
Loading quantity in 20¡¯ |
225 |
128 |
|
Loading quantity in 40¡¯ |
475 |
264 |
|
Loading quantity in 40¡¯HQ |
570 |
264 | |
|
|
